Double head cutting aluminum saw

FOB Reference Price:Get Latest Price
$3,000.00 - $3,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
LJZB-450x3700
Max. Working Width:
120mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works
Brand Name:
Better
Voltage:
415/380/220v
Weight:
900kg
Certification:
CE&ISO
Warranty:
2 Years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Production Capacity:
100 per min
Power(W):
3kw
Dimension(L*W*H):
5200x1300x1800mm
Applicable Material:
PVC, UPVC, Aluminum
Key Selling Points:
Easy to Operate
Button and Contactor:
Schneider
Machine Color:
Any Color or as Your Required
Angle switch:
Manually
service:
engineer available
certificate:
CE & ISO
Power supply:
As request
Air consumption:
100L/min
sensor:
Omron
Air pressure:
0.4~0.6MPa
variable angle:
available
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard ply wooden packing
Port
Qingdao,or any port of China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 3 To be negotiated
Video Description

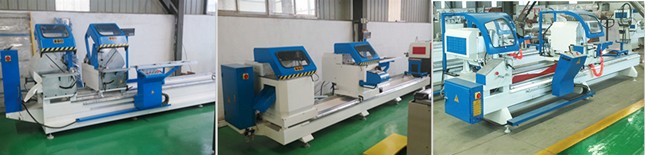

Double head cutting aluminum saw,LJZB-450*3700

Plant layout

Product Description

This machine is used for processing the aluminum and PVC window door profiles at angles of 45, ~90, ~45.

Imported carbide saw blade give accurate processing and high endurance.Saw blade rotate smoothly due to

 high accuracy main spindle.Uniform speed feeding and smooth motion due to pneumatic clamping cylinder.It

 has the features of easy operation and high accuracy,one time processing can cut off the required length.

Power Supply

As required

Cutting motor power

2*1.5kw

Operation air pressure

0.5 -0.8Mpa

Air consumption

100L/min

Blade rotational speed

2800r/min

Saw blade specification

D=450mm d=30mm

Cutting length

Min580mm Max3700mm

Cutting angles

90°,45°,-45°

Contour dimension(L*W*H)

5200x1300x1800mm

Weight(about)

900kg

Related Machines

Automatic cutting machines--- Double head

Corner connector cutting saw machine

End milling machine

Corner crimping machine

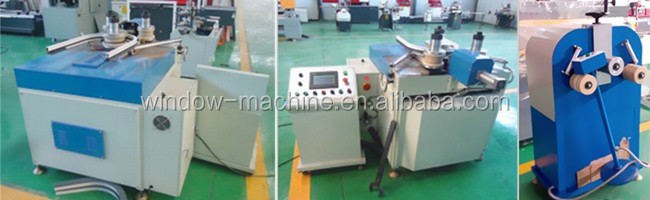

Arch bending machine
