Lock hole drill copy routing UPVC window machine

FOB Reference Price:Get Latest Price
$1,900.00 - $2,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SZJ02
Max. Working Width:
235mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years, 2 Years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Brand Name:
Better
Production Capacity:
100 per min
Dimension(L*W*H):
1200x1100x1600mm
Power(W):
2.2kw
Applicable Material:
PVC, UPVC, Aluminum
Weight:
200kg
Certification:
CE&ISO, CE & ISO
Voltage:
415/380/220v
Applicable Industries:
Construction works
Key Selling Points:
Automatic
Condition:
New
Button and Contactor:
Schneider
Machine Color:
Any Color or as Your Required
PLC:
Mitsubishi
Service:
overseas engineer available
Palce of Origin:
Shandong,China
Usage:
Copy Routing
Cylinder:
Baidi
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard ply wooden packing
Port
Qingdao,or any port in China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 3 To be negotiated
Video Description

Lock hole drill copy routing UPVC window machine,model:SZJ02

plant layout

workshop layout

Product Description

 1IWC]7AU2IXVAYAZ}PD~UKD.png 2WWMT16M)C7FA)NBQWX[_YB.png GHI7`P5U{GHWFEG~O5)3(I.jpg

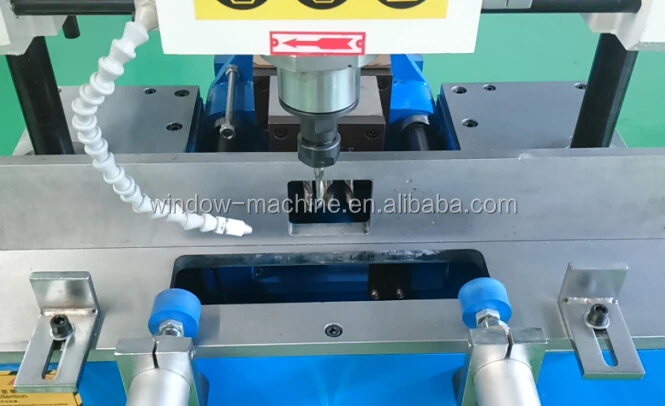

It is a special machine used for processing holes and grooves for upvc and aluminum doors and windows.With features of compact structure ,triple drilling and single milling and small volume.available for processing various kinds holes,grooves and water slots on windows and doors.Long life use hole drilling part.One motor drive triple drilling cutter by the gear box, from the feeding handle move forward to process the 3 lock hole.copy routing part.one motor drive single milling cutter by one belt,the groove is same in dimension and shape as the copy board.clamping part.the machine has two cylinder to clamping the profile  horizontally.the requirement of environment.the machine is installed on the hard and smooth cement ground in the workshop , the environment is dry.

Working Air Pressure

0.4~0.6Mpa

Air Consumption

30L/min

Power Supply

As required

Input Power

2.2kw(1.1kw,1.1kw)

Milling cutter diameter

5mm 6mm 8mm

Copy-routing range

235*90*100mm

Outside Dimension

1000*1130*1500mm

Weight(about)

250kg

Cutting saw machine

Double / Single head

320 320

320 320

06320 06320

320 06320
