Lock hole copy router milling UPVC window machine

FOB Reference Price:Get Latest Price
$1,300.00 - $1,600.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
SZJ01
Max. Working Width:
230mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years, 2 Years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Brand Name:
Better
Production Capacity:
80 per min
Dimension(L*W*H):
1200x900x1500mm
Power(W):
1.9kw
Applicable Material:
PVC, UPVC, Aluminum
Weight:
200kg
Certification:
CE&ISO, CE & ISO
Voltage:
415/380/220v
Applicable Industries:
Construction works
Key Selling Points:
Easy to Operate
Condition:
New
Button and Contactor:
Schneider
Machine Color:
Any Color or as Your Required
PLC:
Mitsubishi
Service:
overseas engineer available
Palce of Origin:
Shandong,China
Usage:
Copy Routing
sensor:
Omron
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard ply wooden packing
Port
Qingdao,or any port in China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 2 To be negotiated
Video Description

Lock hole copy router milling UPVC window machine,model:SZJ01

plant layout

workshop layout

Product Description

pin1.jpg pin2.jpg pin3.jpg

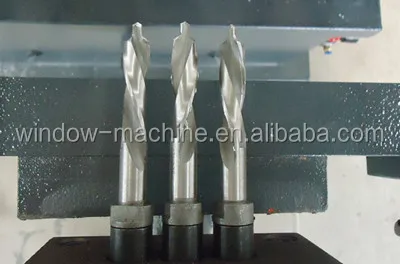

It is a special machine used for processing holes and grooves for aluminum doors and windows.With features of compact structure ,triple drilling and single milling and small volume.available for processing various kinds holes,grooves and water-slots on windows and doors.long life use hole drilling part.one motor drive triple drilling cutter by the gear box, from the feeding handle move forward to process the 3 lock hole.copy routing part.one motor drive single milling cutter by one belt, the groove is same in dimension and shape as the copy board. clamping part.the machine has two cylinder to clamping the profile  horizontally.the requirement of environment.the machine is installed on the hard and smooth cement ground in the workshop , the environment is dry. No corrosive gas and the temperature is within 10 to 40°C

Working Air Pressure

0.4~0.6Mpa

Air Consumption

30L/min

Power Supply

As required

Input Power

1.85kw(0.75kw,1.1kw)

Milling cutter diameter

5mm 8mm

Copy-routing range

290*90*100mm

Copy-routing range

300*100mm

Outside Dimension

1000*1130*1500mm

Weight(about)

200kg

Cutting saw machine

Double / Single head

320 320

320 320

06320 06320

320 06320
