Quick Details

  • Condition: New
  • Machine Type: Glass Washing and Drying Machine
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Better
  • Model Number: BX1600
  • Voltage: 380V
  • Power(W): 9kw
  • Dimension(L*W*H): 2900x2100x1200mm
  • Weight: 1100kg
  • Certification: ISO, CE, SGS
  • Warranty: 2 years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Usage: Glass washing machine
  • Machine function: Washing and drying glass
  • Original glass thickness: 3-19mm
  • Min. glass size(WxL): 200x300mm
  • Max. glass size(WxL): 1600x2400mm
  • Max. working speed: 12m/min
  • Machine appearance: Horizontal type
  • Electric parts brand: Schneider (France brand)
  • Color: As customer required
  • Application: Glass washing and insulating glass production

Packaging & Delivery

Packaging Details Export standard PLYwood case for packing glass washing machine
Delivery Time Shipped in 7 days after payment

China horizontal double glazed insulating glass washing machine

Horizontal glass washing machine / Glass cleaning machine / Glass washing and drying machine (Model:BX1600)

Product Description

Brief description

1).The machine is a high-efficiency glass washing machine.
2).It is used for washing and drying before production of insulating glass to ensure glass is clean.
3).It is horizontal structure,loading,washing,drying,unloading are continuous operation.
4).Automatic conveying device can change speed in stepless way,performance is stable.
5).It is an economical and practical machine for insulating glass,and it is the necessary machine in the production of insulating glass.

Features

1).It is used to wash 3-19mm glass, with the horizontal structure, it is stable to transmit.

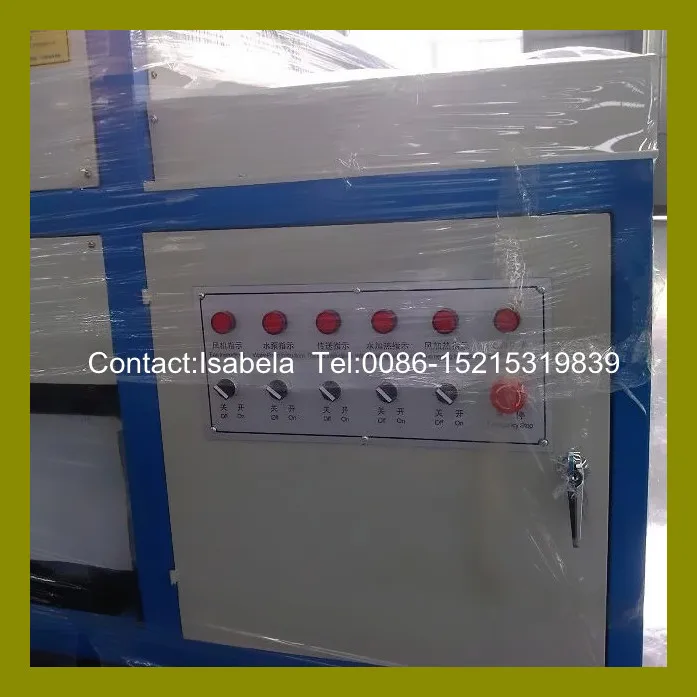

2).Stable performance with famous contactor, button switches and light.
3).Stepless speed adjustable so easy to operate as the button are concentrated on the operation
table.
4).The height of washing tank can be changed to meet the requirement of any glass thickness.

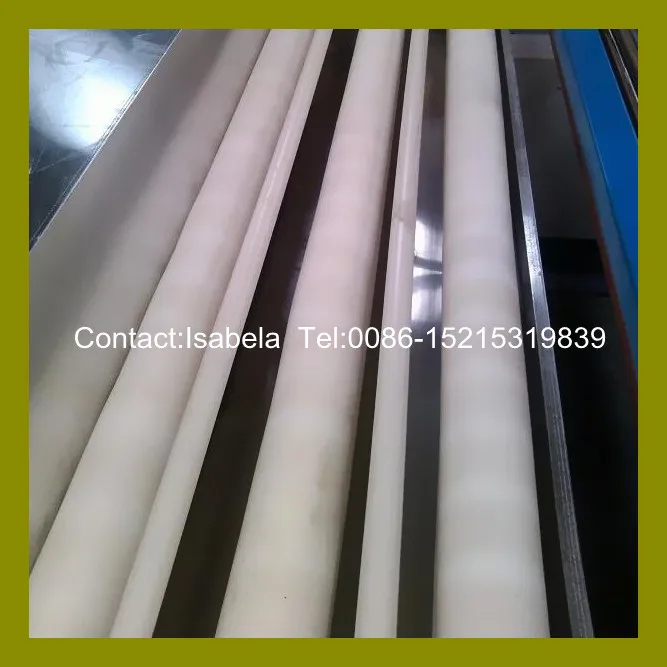

5).Two pairs (4 pieces) brushes assure the washing quality while two pairs of air knives assure the
drying. Brush can wash Low-e glass. (If customers require that add brushes,customers wil pay
some extra charge for the extra brushes.)
6).Inspecting light is equipped to check the glass washing quality.

Friendly note

We have common Model: BX1600, BX1800, BX2200, BX2500. Customer can choose the proper model according to the max. glass size requirement.

Technical Parameters

Parameters

Model

BX1600

BX1800

BX2200

BX2500

Power supply

380V/50Hz

or as required

380V/50Hz

or as required

380V/50Hz

or as required

380V/50Hz

or as required

Total power

9kw

20kw

22kw

29kw

Max. working speed

12m/min

12m/min

12m/min

12m/min

Max. glass size(WxL)

1600x2400mm

1800x2500mm

2200x3000mm

2500x3500mm

Min. glass size(WxL)

200x300mm

200x300mm

200x300mm

200x300mm

Original glass thickness

3-19mm

3-19mm

3-19mm

3-19mm

Dimension(LxWxH)

2900x2100x1200mm

4000x2300x1200mm

5000x2450x1200mm

6000x2550x1200mm

Net weight (about)

1100kg

1600kg

2200kg

2900kg

Main parts brand name

Electrical button and switcher: Schneider (France brand)

AC contactor:Schneider (France brand)

Circuit breaker:Schneider (France brand)

Standard accessory

Certificate:1 piece

Complete tooling:1 set

Operation manual:1 piece

Detailed Images

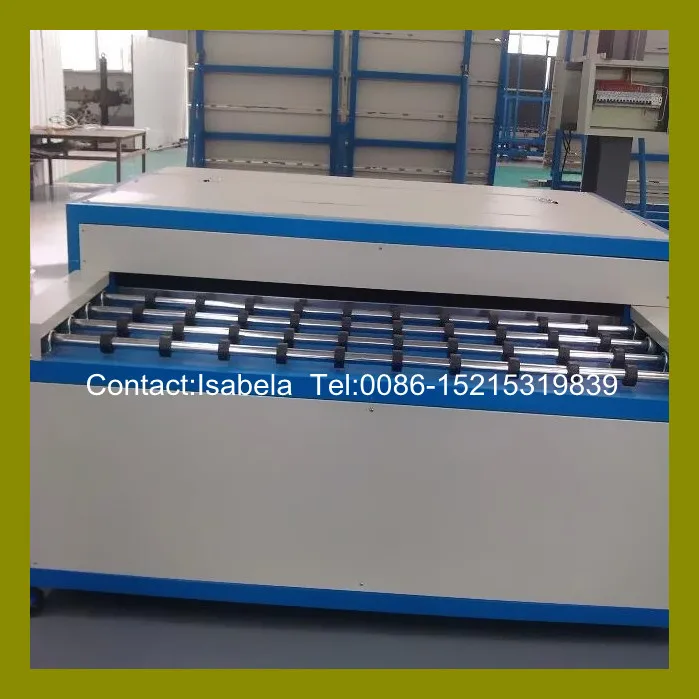

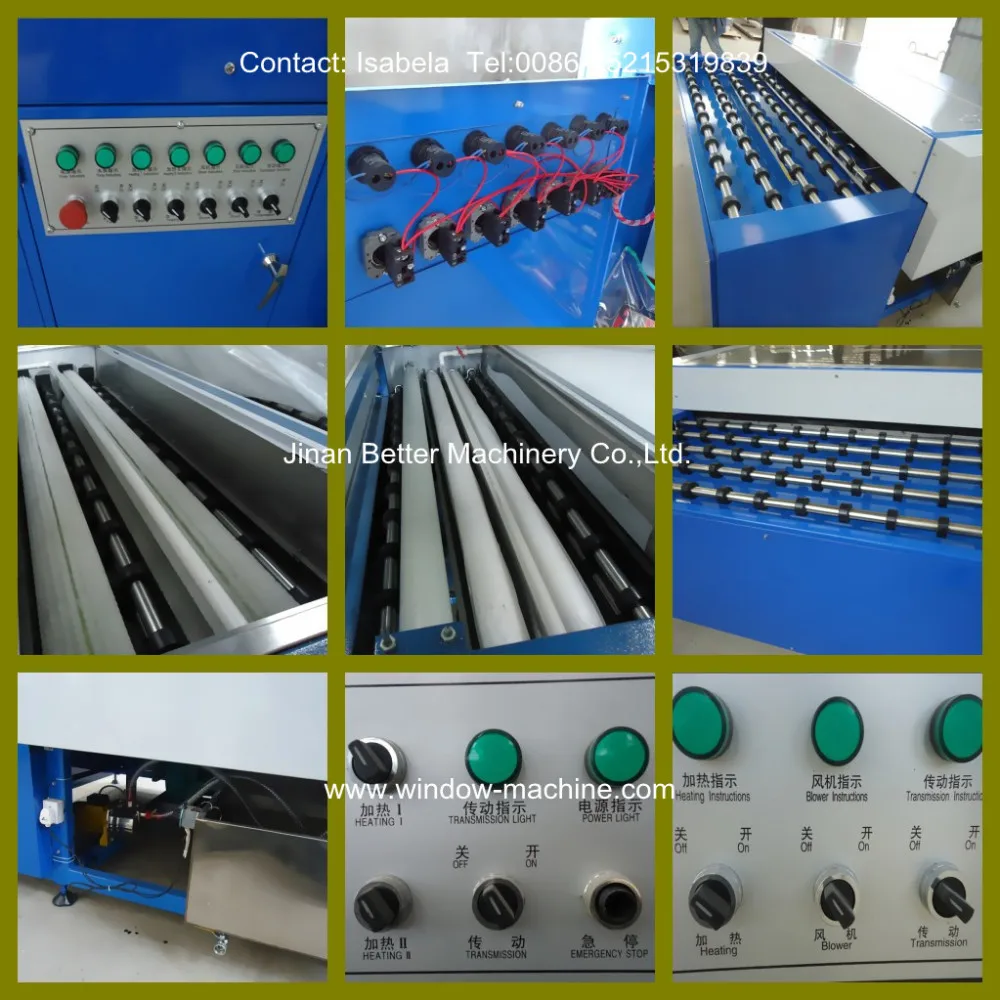

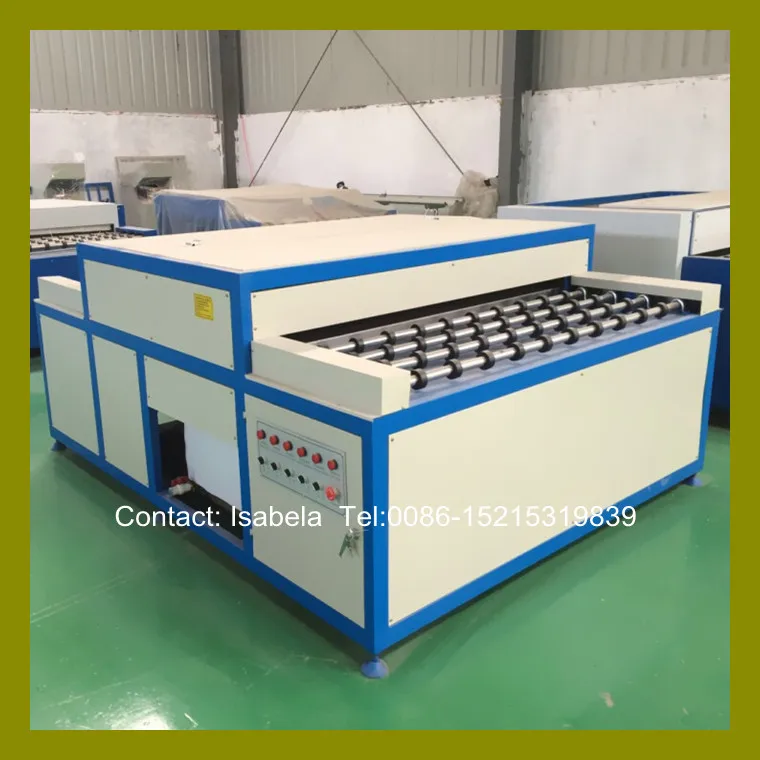

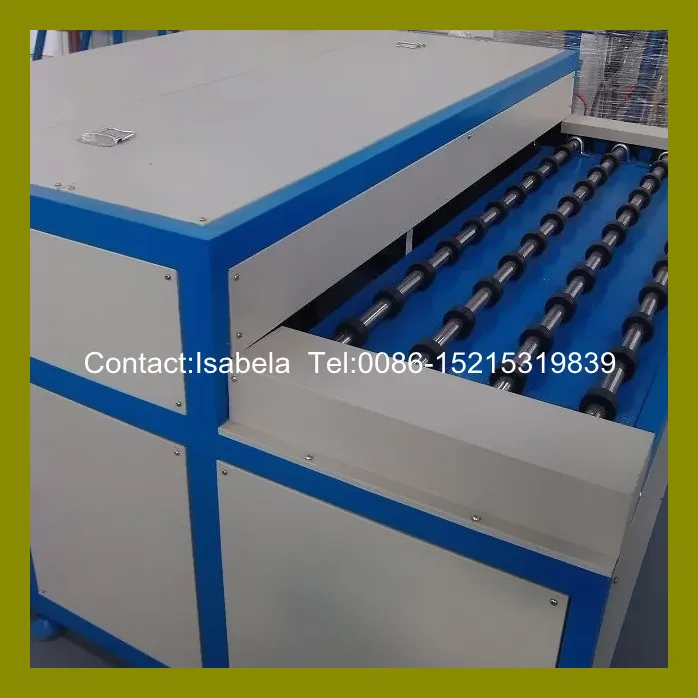

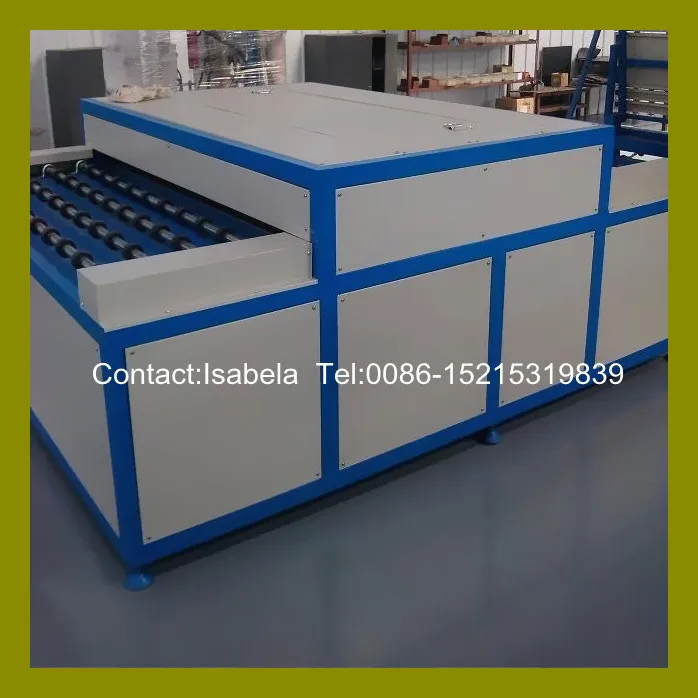

Model BX1600 pictures (Model BX1800,BX2200,BX2500 picture is like this Model BX1600)

Packaging

Related Products

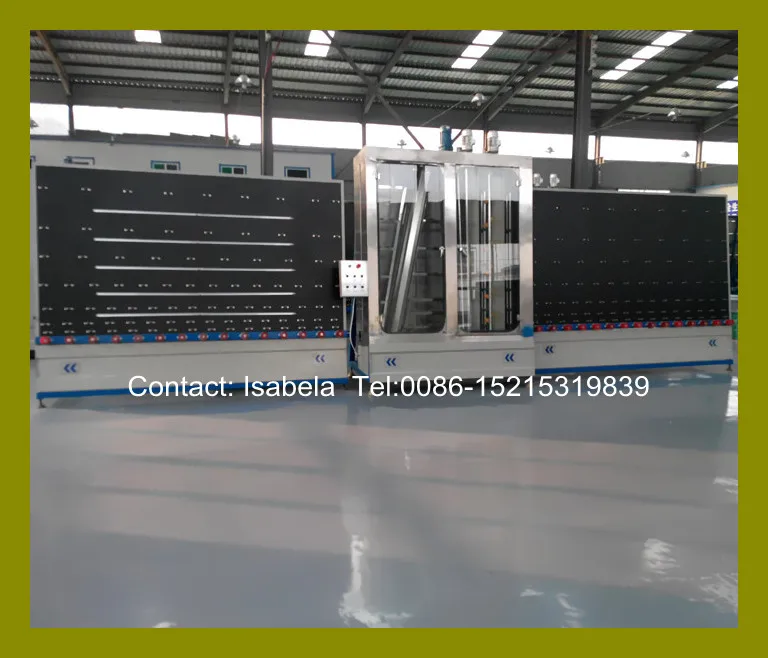

Vertical glass washing machine

Vertical glass washing machine,we have Model:LB1600A,LB1800A,LB2200A,LB2500A.

Company&Customer

Our company workshop and machines certificates


Our machines in foreign customer workshop pictures


FAQ

WHY YOU CHOOSE US Question AND Answer

1.Question:Are your manufacture?

Answer:

We are manufacture of the PVC/UPVC/Plastic/Vinyl window door machine, Aluminum window door machines, Insulating glass machines.



2.Question:What’s the customer service?

Answer:

1).Reply within 12 hours.

2).One to one service.

3).24 hours for after-sale service.

4).More than 15 years experience in this field.

5).Fluent English, communication barrier free.



3.Question:What’s the guarantee?

Answer:

1).Our guarantee for 2 years.

2).24 hours technical support by email or calling.

3).English manual and video tutorial.

4).2 years quality guarranty for the machine (excluding the consumables).

5).We will provide the consumable parts at an agency price.

6).24 hours on line service each day, free technical support.



4.Question:If your price is higher than another company or factory?

Answer:

Please check, what is is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years. We believe that you will choose the true quality long lifetime machine, not cheaper machine.



5.Question:How long is the delivery time?

Answer:

For standard machines, it will take 1-15 days. (Some machines, such as the lock hole milling machine, end milling machine or glass edge polishing machine or butyl extruder machine etc., these common models machines, if you buy separate machine, we can delivery within 1-7 days after get your deposit, it depends on different model; If your order machines are enough a container to load or you order the whole production line machines, we can delivery within 10-15 days.)

For non-standard machines and customized machines according to clients specific requirements, it will take 15 to 30 days. (If the machines that customer ordered are very special, we will take long time to make the machine specially, it will take 15-30 days, this point hope customer can understand, thanks!)



6.Question:How's the payment?

Answer:

1).Telegraphic Transfer. T/T: 30% T/T deposit, 70% rest balance before shipment or against the original BL scanning. (If customer want to pay little deposit in beginning, for example, some customer want to pay 10% deposit, it is also acceptable; If some customer visit our factory and confirm the order, want to pay some cash as deposit, it is also acceptable).

2).L/C.

3).If you want by Western Union or Trade Assurance, it is also OK.



7.Question:What is Jinan Better Company special advantage?

Answer:

We have skilled engineers with well English ability in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time. Before our machine reach your workshop, if you need we help you to design the drawing that list all machines should how to place in your workshop, we can help you to make the drawing to give suggestion in short time; And if you need we suggest how many squaremeters workshop is betterr, you can tell us your plan production, then we will  suggest how many machines you need, and tell you how many squaremeters workshop is better.



8.If I want to use some certificates to pay less tax for importing your machines, can you help me?

Answer:

Our company can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.



9.Question:What is your contact information if we want to start business with you?

Answer:

Contact Person:Ms.Isabela

Jinan Better Machinery Co.,Ltd.

Address:No.6 Lashan North Road,Jinan City,Shandong Province,China.

Tel:0086-531-85608516

Mobile No.:0086 18606396657

WhatsApp &Wechat:0086 18606396657
